SF-A、SF-B扇形閘門由優質鋼板焊接而成，結構簡單，它具有開啟靈活無卡阻等特點。SF-A、SF-B扇形閘門廣泛用于建材、冶金、礦山、化驗室、電力等行業是各類落料系統的卸料控制裝置。
技術參數
| 適用介質 | 適用溫度 | 介質流速 |
| 晶料固體顆料物料粉狀物料 | ≤300℃ | ≤28m/s |

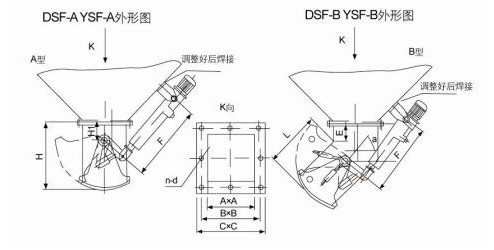

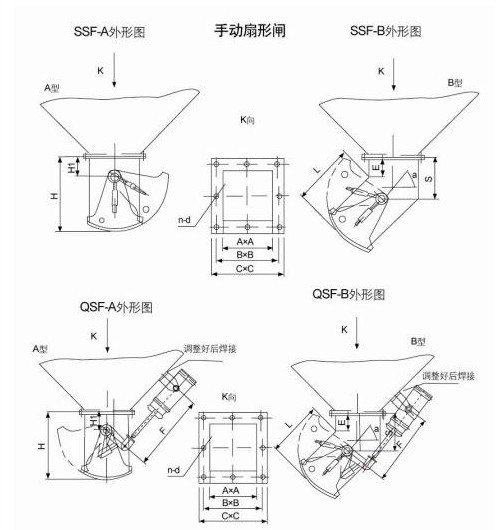

| AxA | BxB | CxC | A | L | S | H | H1 | n-d | E | F |
| 200x200 | 250x250 | 290x290 | 45° | 260 | 163 | 300 | 80 | 8-φ14 | 80 | 475 |
| 60° | 240 | 134 | ||||||||
| 300x300 | 360x360 | 400x400 | 45° | 360 | 204 | 400 | 8-φ14 | 575 | ||
| 60° | 340 | 160 | ||||||||
| 400x400 | 460x460 | 500x500 | 45° | 450 | 246 | 480 | 90 | 8-φ14 | 675 | |
| 60° | 430 | 187 | ||||||||
| 500x500 | 570x570 | 625x625 | 45° | 550 | 307 | 560 | 100 | 12-φ18 | 100 | 785 |
| 60° | 530 | 234 | ||||||||
| 600x600 | 670x670 | 725x725 | 45° | 620 | 349 | 620 | 120 | 12-φ18 | 885 | |
| 60° | 600 | 261 | ||||||||
| 700x700 | 770x770 | 825x825 | 45° | 690 | 391 | 720 | 16-φ18 | 985 | ||
| 60° | 670 | 451 | ||||||||
| 800x800 | 880x880 | 950x950 | 45° | 750 | 334 | 800 | 150 | 16-φ22 | 120 | 1120 |
| 60° | 730 | 493 | ||||||||
| 900x900 | 980x980 | 1050x1050 | 45° | 810 | 361 | 880 | 20-φ22 | 1220 | ||
| 60° | 790 | 536 | ||||||||
| 1000x1000 | 1080x1080 | 1150x1150 | 45° | 870 | 408 | 960 | 20-φ22 | 1320 |
| 200x200 | 300x300 | 400x400 | 500x500 | 600x600 | 700x700 | 800x800 | 900x900 | 1000x1000 | |
| 電動推桿 | DILA100-M 0.37kw | DILA300-M 0.55kw | DILA500-M 0.75kw | ||||||
| 氣動推桿 | 10A-5CNN63B | 10A-5CNN80B | 10A-5CNN100B | ||||||
